CBRN Kits and Solutions

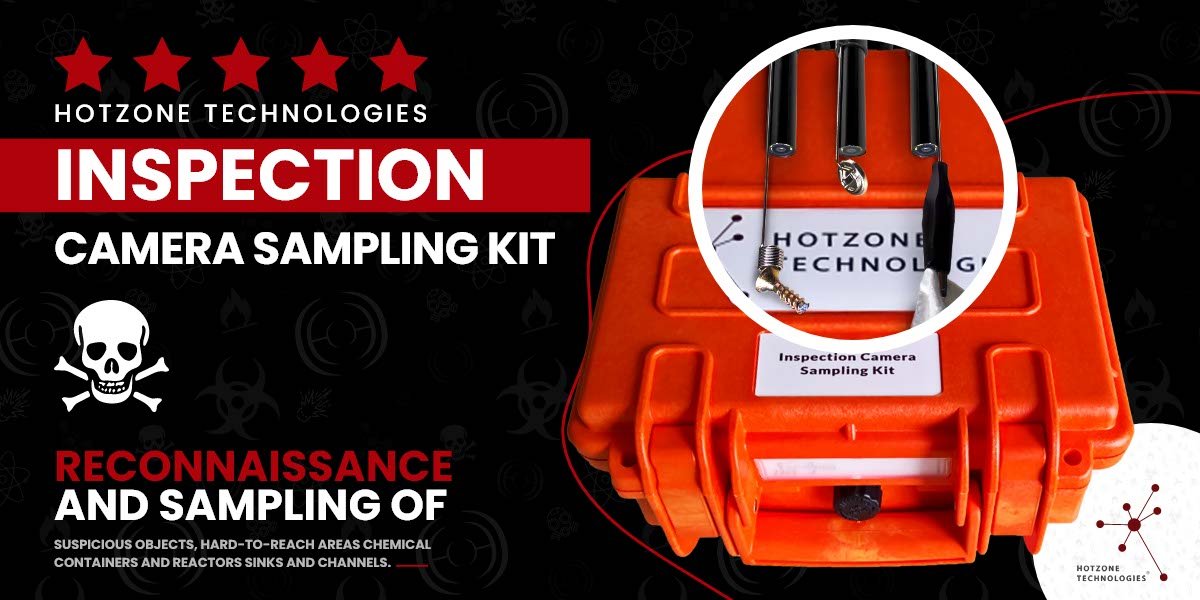

Inspection Camera Sampling Kit

    • A flexible and rigid snake wire camera cable comes with a choice of sampling attachments.

      With overall length of 5 m and small diameter, this camera tool can be pushed through narrow openings, channels and sinks or used for inspection of suspicious objects and large volume containers (e.g. chemical barrels, reactors).

    • A syringe with a luer type stopcock is connected via a luer lock adapter to a chemical resistant tubing. The tubing is provided in a whole length of camera.

      The tubing can be attached to the camera by mean of the special adhesive tape.

      After use, the tape is easily removed without a trace and the system is detached from the camera.

    • Android smartphone/tablet, Windows PC/ tablet, MacBook OS. Optionally offered: a though book and a waterproof and shock proof smart phone with 13-megapixel camera and FLIR thermal imaging sensor.

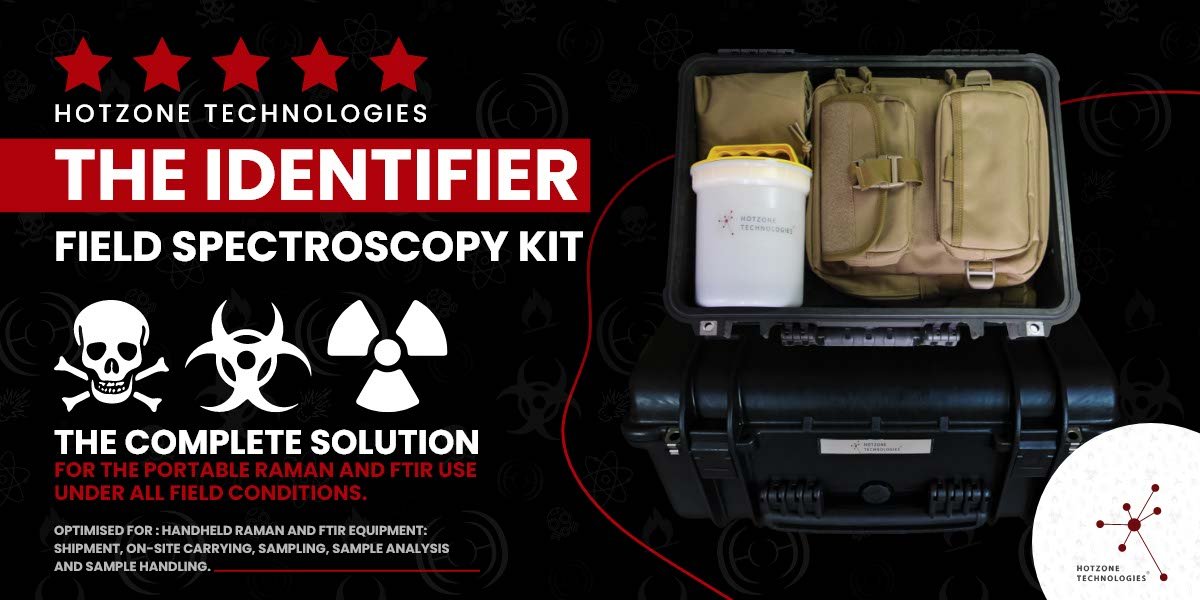

Field Spectroscopy Kit

    • The Field Spectroscopy Kit is built upon the experience from the critical international missions in Syria, Iraq and Lybia. It comes as the field ready solution that enables :
      • Hands-free carrying of portable Raman and FTIR instrumentation under hazardous and non-hazardous conditions.
      • Collection and manipulation of liquid and solid samples coming from loose or packaged sources.
      • Optimised introduction of the samples to the on-site Raman and FTIR analysis.
      • On-site and off-site transport of the samples.

      A chemically resistant, leak proof secondary container is provided for on-site and off-site transport of primary containers with samples.
      The container is suitable for the most of the hazardous substances, including : Flammable Liquids (Class 3) ; Flammable Solids (Class 4) ; Oxidizing Agents (Class 5) ; Peroxides (Class 5) ; Toxics (Class 6.1) ; Infectious Substances (Class 6.2) ; Some Radioactives (Class 7) ; Most Corrosives (Class 8).

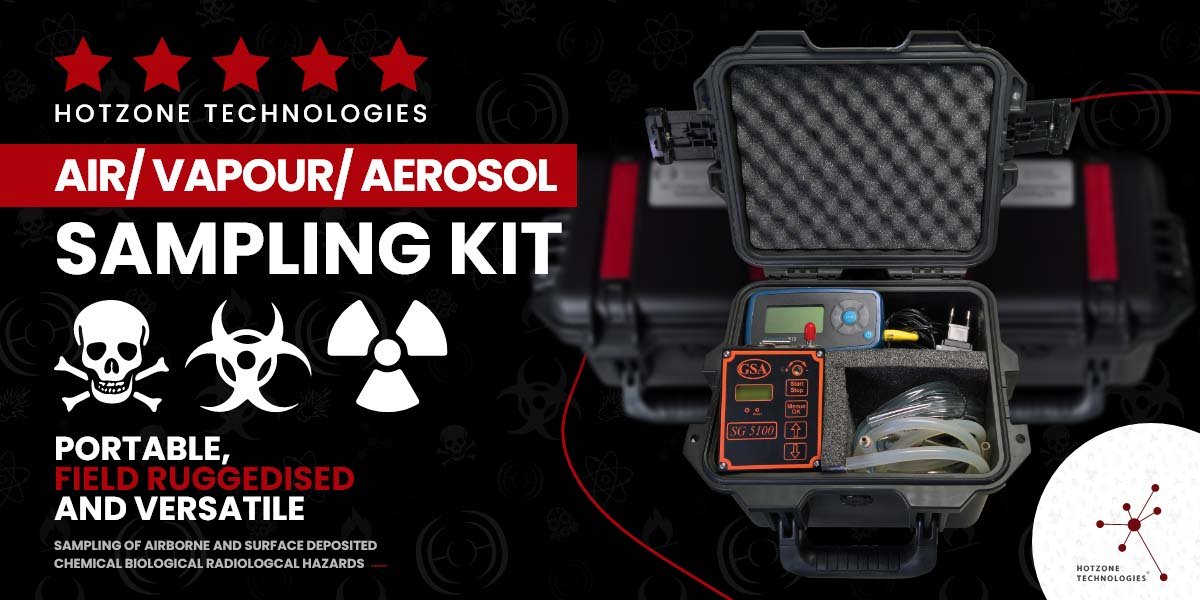

Air Vapour Sampling Kit

    • A portable, lightweight, yet powerful rotary vane pump for active sampling at both, low and high flow ends. The sampling assembly is calibrated using a field ruggedised, battery operated primary calibrator.
      A vacuum-style cassette design provides also for direct collection of the solid particles and pathogens from solid surfaces, such is carpet. Samples are easy to manipulate and over pack for a transport/ evidence.

    • At low flow end, chemical vapours are collected into solid adsorbent tube. A selection of sampling tubes is offered depending on the sampling targets and end users’ analysis techniques.
      Vapours and solid/liquid aerosols can be collected using portable impingers filled with solvent of choice. This is an optional item separately requested.
      Solid aerosols/particles potentially containing chemical, biological or radiological threats are collected using cassettes with membrane filters. A range of membranes of different pore sizes are available.

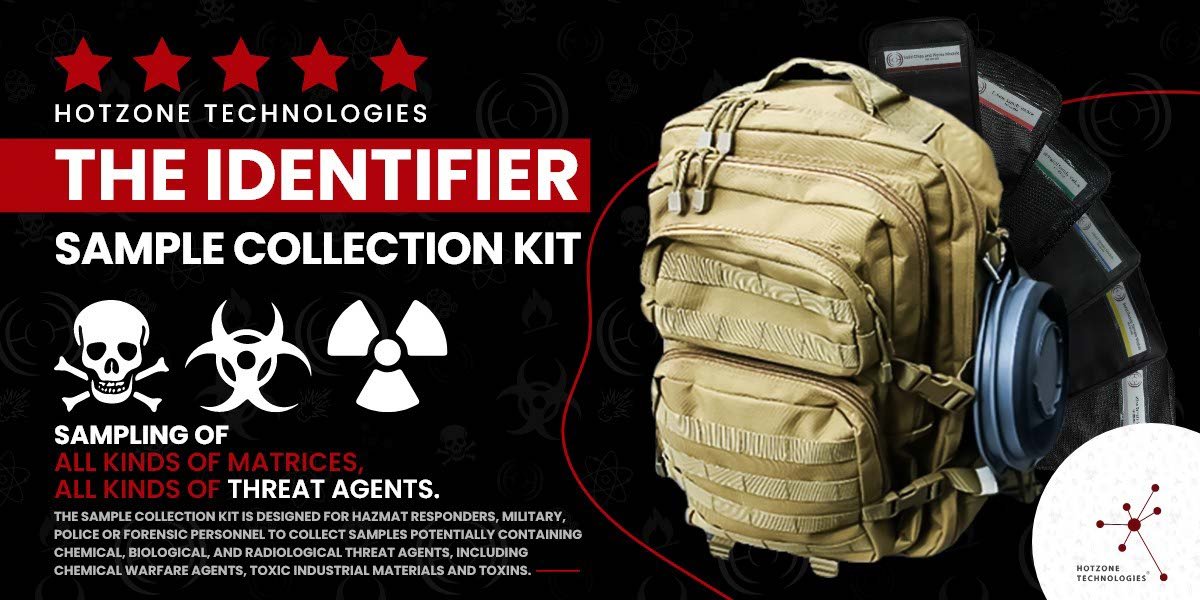

Sample Collection Kit

    • The kit enables safe collection of all kinds of liquid, solid, wipe, gas/vapor and aerosol samples, coming from environmental or bulk sources.The user can choose between the prepacked, integrity guaranteedmodules sorted according to the sample types.The modules are field carried by the featured one-strap backpack for easy and hands-free use.

    • The CBRN Sampling Kit is designed for hazmat responders, military, police or forensic personnel to collect samples potentially containing chemical, biological, and radiological threat agents, including chemical warfare agents, toxic industrial materials and toxins. The sampling tools are carefully selected based on actual field experience with the majority beingamenable to decontamination and can be re-used, if deemed necessary. The tools come in the traceable, sealed modules, with certificate of cleanliness for evidence collection cases. A selection of sample containers is available, chemically resistant, and are leak proof, and adequate for long term storage of different sample types and volumes.
